S3 Event Notifications via AWS SQS

Polytomic is able to incrementally read data from S3 by reading Event Notifications from an AWS SQS queue. There are three components to supporting incremental reading: an SQS queue, S3 notification rules, and Polytomic configuration.

SQS Queue

You must create an SQS queue to receive event notifications from S3. The queue policy must allow S3 to publish events. It must also allow Polytomic to consume events from the queue.

Polytomic reads the queue using the S3 connection's own credentials (its IAM role or access key). Grant the following actions on the queue to that role or IAM user:

• sqs:ReceiveMessage
• sqs:DeleteMessage
• sqs:GetQueueAttributes (optional; used to report how many events are waiting)

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "PolytomicConsumeS3Events",
            "Effect": "Allow",
            "Action": [
                "sqs:ReceiveMessage",
                "sqs:DeleteMessage",
                "sqs:GetQueueAttributes"
            ],
            "Resource": "arn:aws:sqs:us-east-2:123456789012:polytomic-s3-events"
        }
    ]
}

If AWS denies the connection's credentials, Polytomic retries using its own AWS account (account ID 568237466542). Instead of granting the connection's role or IAM user access, you can allow that account to consume from the queue in the queue policy. The AllowCrossAccountConsume statement in the example below does this.

🚧

Encrypted queues

If a customer managed KMS key encrypts the queue, the key policy must also allow S3 to use the key (kms:GenerateDataKey, kms:Decrypt). It must also allow Polytomic's credentials to use kms:Decrypt.

If you use Terraform to manage your infrastructure, the following demonstrates configuring a queue with an appropriate policy.

# SQS Queue for S3 event notifications
resource "aws_sqs_queue" "s3_events" {
  name                       = var.queue_name
  visibility_timeout_seconds = 300
  message_retention_seconds  = 345600 # 4 days
  receive_wait_time_seconds  = 20     # Enable long polling

  tags = var.tags
}

# SQS Queue Policy allowing S3 to send notifications and cross-account access
resource "aws_sqs_queue_policy" "s3_events" {
  queue_url = aws_sqs_queue.s3_events.id

  policy = jsonencode({
    Version = "2012-10-17"
    Statement = [
      {
        Sid    = "AllowS3ToSendMessage"
        Effect = "Allow"
        Principal = {
          Service = "s3.amazonaws.com"
        }
        Action   = "SQS:SendMessage"
        Resource = aws_sqs_queue.s3_events.arn
        Condition = {
          ArnEquals = {
            "aws:SourceArn" = data.aws_s3_bucket.existing_bucket.arn
          }
        }
      },
      {
        Sid    = "AllowCrossAccountConsume"
        Effect = "Allow"
        Principal = {
          AWS = "arn:aws:iam::568237466542:root"
        }
        Action = [
          "SQS:ReceiveMessage",
          "SQS:DeleteMessage",
          "SQS:GetQueueAttributes"
        ]
        Resource = aws_sqs_queue.s3_events.arn
      }
    ]
  })
}

S3 notification configuration

The S3 bucket must be configured to emit events to the queue you configured. You should configure it to send the following events:

• s3:ObjectCreated:*
• s3:ObjectRestore:*

If you plan to enable Propagate file deletion events (see below), also send:

• s3:ObjectRemoved:*
• s3:LifecycleExpiration:*

The AWS documentation covers configuring event notifications via the console. If you use Terraform, the following demonstrates setting the notification configuration for an existing bucket:

# S3 Bucket notification configuration
resource "aws_s3_bucket_notification" "bucket_notification" {
  bucket = data.aws_s3_bucket.existing_bucket.id

  queue {
    queue_arn = aws_sqs_queue.s3_events.arn
    events = [
      "s3:ObjectCreated:*",
      "s3:ObjectRestore:*",
      # Required for Propagate file deletion events:
      # "s3:ObjectRemoved:*",
      # "s3:LifecycleExpiration:*",
    ]
    filter_prefix = var.notification_prefix
    filter_suffix = var.notification_suffix
  }

  depends_on = [aws_sqs_queue_policy.s3_events]
}

Note that this example declares a dependency on the queue in the previous example; this ensures Terraform creates the queue and updates its policy before attempting to assign it to the bucket.

Polytomic connection configuration

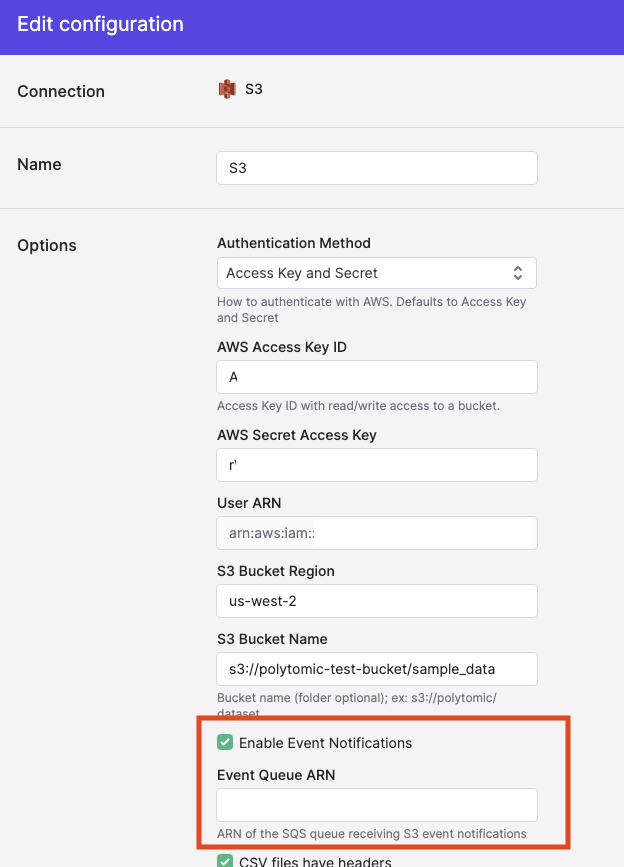

In the Polytomic connection configuration, check the box for Enable event notifications and enter the ARN of the SQS queue you created in Event queue ARN. For example, arn:aws:sqs:us-east-2:123456789012:polytomic-s3-events.

Optionally, check Propagate file deletion events. When you delete a file from the bucket, or a lifecycle rule expires it, Polytomic soft-deletes the corresponding records in supported destinations on the next sync. This option requires:

• A record key captured from the file path.
• The ObjectRemoved and LifecycleExpiration notifications described above.

When this option is off, Polytomic ignores deletion events.
