Using AWS IAM roles to access S3 buckets

Polytomic supports using AWS IAM roles to access S3 buckets for several connection types.

• AWS S3 for providing read and write access to a bucket.
• Databricks for accessing an S3 bucket used to stage data during syncs.
• Redshift Serverless for accessing an S3 bucket used to stage data during syncs, and for reading data using UNLOAD operations.

This page describes common configuration settings for these connections.

S3 Permissions

Polytomic requires the following permissions when writing to S3 buckets, either directly or as a staging area for other connections.

• s3:GetObject
• s3:ListBucket
• s3:PutObject
• s3:DeleteObject
• s3:GetBucketLocation

These permissions should be granted for the bucket and the wildcard (*) object in the bucket.

For example, a valid IAM policy for a bucket named syncoutput would be as follows.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "PolytomicBucket",
            "Effect": "Allow",
            "Action": [
                "s3:GetObject",
                "s3:ListBucket",
                "s3:PutObject",
                "s3:DeleteObject",
                "s3:GetBucketLocation"
            ],
            "Resource": [
                "arn:aws:s3:::syncoutput/*",
                "arn:aws:s3:::syncoutput"
            ]
        }
    ]
}

Role Assumption

In addition to operating permissions, the role must be assumable by Polytomic. A trust policy that allows both Polytomic to assume the role will look like the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::568237466542:root"
            },
            "Action": "sts:AssumeRole"
        }
    ]
}

Some integrations such as Redshift Serverless require additional trust clauses; consult the integration documentation for details.

Specifying an IAM role for your connection

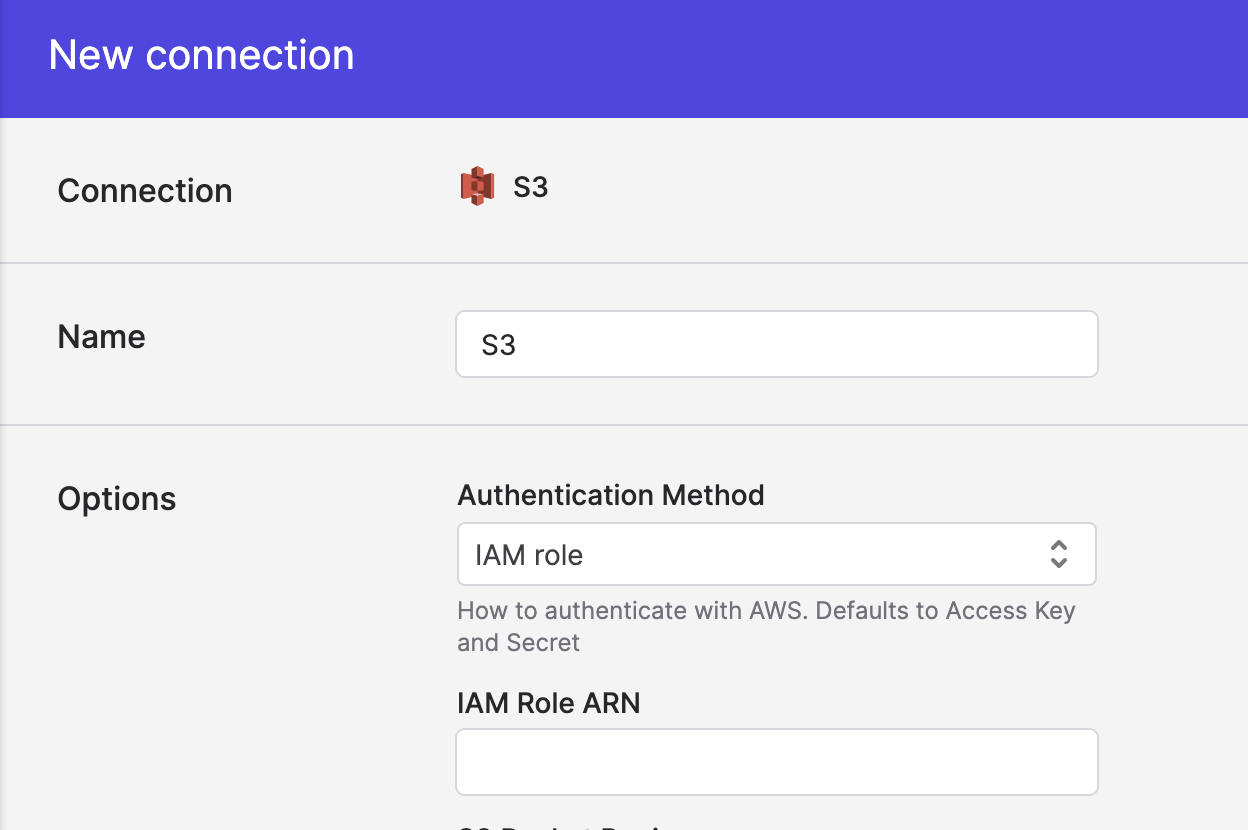

1. When creating an S3, Databricks, or Redshift connection, choose IAM role for the Authentication method.
2. Enter the IAM Role ARN Polytomic will assume when connecting to the bucket.

3. Click Save.

Restricting the trust policy

Using an external identifier

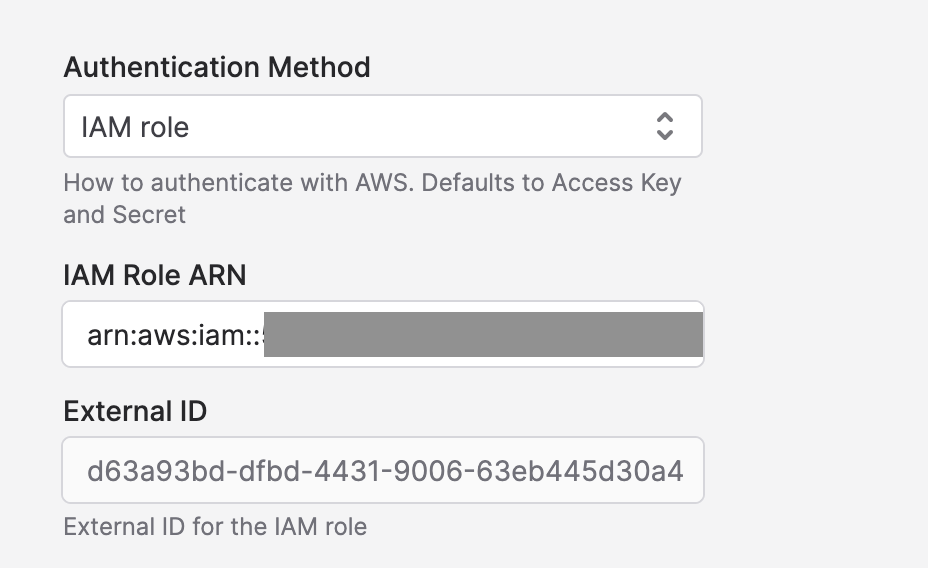

When you click Save Polytomic will generate an External ID, which can be used to further limit who is able to assume the provided role. If you return to the connection, you'll see the External ID below the Role ARN.

A trust policy that verifies the External ID before allowing Polytomic to connect will look like the following:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Principal": {
                "AWS": "arn:aws:iam::568237466542:root"
            },
            "Action": "sts:AssumeRole",
            "Condition": {
                "StringEquals": {
                    "sts:ExternalId": "0000"
                }
            }
        }
    ]
}

Note that the value for sts:ExternalId is specific to your Polytomic account.

Restricting assumption to a role

You can further restrict who can assume your role by specifying the following role from Polytomic's account as the principal:

arn:aws:iam::568237466542:role/convox/prod-polytomic-ServiceRole-1ELGH39L0GCHT

This role may change in the future, requiring updates to the connection.
